FANCY fire-fighting pumps

End-suction and split-case fire pumps, the diesel engines and electric motors that drive them, and the jockey pumps that hold a fire protection system's pressure.

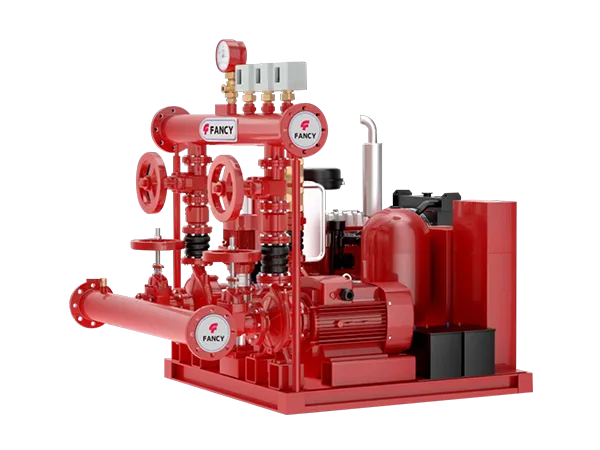

FANCY fire-fighting set in red: an electric pump and a diesel engine, with valves, a header, a pressure gauge and pressure switches, on one base frame — FANCY · the maker's picture

Fire-fighting sets — electric, diesel and jockey

Electric, diesel and jockey pumps on one skid, assembled here with their panels.

Models and ratings

FSM end-suction fire pumps

Model	Power (kW / HP)	Max. head (m)	Max. flow (m³/h)
FSM 32-200/55	5.5 / 7.5	60	27
FSM 32-200/92	9.2 / 12.5	79	34
FSM 32-200/150	15 / 20	97	34
FSM 40-200/150	15 / 20	88.5	57
FSM 50-200/150	15 / 20	68.5	79
FSM 50-200/220	22 / 30	89.5	91
FSM 65-200/220	22 / 30	64.8	114
FSM 65-200/370	37 / 50	92	136
FSM 65-250/450	45 / 60	102	136
FSM 65-250/750	75 / 100	141	216
FSM 80-200/450	45 / 60	88	216
FSM 80-200/750	75 / 100	108.5	216
FSM 80-250/750	75 / 100	124	227
FSM 80-250/1100	110 / 150	153	227
FSM 100-200/750	75 / 100	91	341
FSM 100-250/1100	110 / 150	118	341
FSM 100-250/1600	160 / 220	148	341
FSM 125-200/900	90 / 125	87	397
FSM 125-250/1600	160 / 220	112	568
FSM 125-250/2000	200 / 270	136	568
FSM 150-200/1600	160 / 220	90	1022
FSM 150-250/1850	185 / 250	92	795
FSM 150-250/2800	280 / 380	124	1022

FSD split-case fire pumps

Model	Power (kW / HP)	Max. head (m)	Max. flow (m³/h)
FSD 32-250/55	6.3 / 8.6	60	27
FSD 32-250/92	8.2 / 12	79	34
FSD 32-250/150	20 / 27	97	34
FSD 40-250/150	20 / 27	88.5	57
FSD 50-250/150	20 / 27	68.5	79
FSD 50-250/220	24 / 32	89.5	91
FSD 65-250/220	24 / 32	64.8	114
FSD 65-250/370	42 / 58	92	136
FSD 65-315/450	45 / 61	102	136
FSD 65-315/750	75 / 100	141	216
FSD 80-250/450	45 / 61	88	216
FSD 80-250/750	75 / 100	108.5	216
FSD 80-315/750	75 / 100	124	227
FSD 80-315/1100	110 / 150	153	227
FSD 100-250/750	75 / 100	91	341
FSD 100-315/1100	110 / 150	118	341
FSD 100-315/1600	165 / 225	148	341
FSD 125-250/900	90 / 125	87	397
FSD 125-315/1600	165 / 225	112	568
FSD 125-315/2000	200 / 270	136	568
FSD 150-250/1600	165 / 225	90	1022
FSD 150-315/1850	200 / 270	92	795
FSD 150-315/2800	300 / 410	124	1022

Ratings at 60 Hz, as FANCY publishes them.

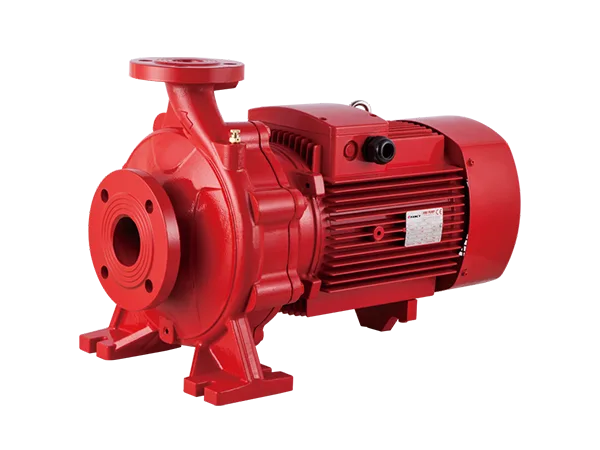

FST

End-suction fire pump

An end-suction fire pump, sized to the calculated demand of the system it serves.

Models and ratings

Model	Power (kW / HP)	Max. head (m)	Max. flow (m³/h)
FST 32-200/55	5.5 / 7.5	60	27
FST 32-200/92	9.2 / 12.5	79	34
FST 32-200/150	15 / 20	97	34
FST 40-200/110	11 / 15	78	57
FST 40-200/185	18.5 / 25	94	57
FST 50-200/185	18.5 / 25	79	91
FST 65-200/220	22 / 30	64.8	114
FST 65-200/370	37 / 50	92	136
FST 65-250/450	45 / 60	102	136
FST 65-250/750	75 / 100	141	216
FST 80-200/370	37 / 50	71.5	216
FST 80-200/550	55 / 75	94.5	216
FST 80-250/550	55 / 75	98	216
FST 80-250/900	90 / 125	144	227
FST 100-200/550	55 / 75	77	306
FST 100-200/900	90 / 125	100	341
FST 100-250/900	90 / 125	100	341
FST 100-250/1320	132 / 180	129	341
FST 125-200/550	55 / 75	70	306
FST 125-200/900	90 / 125	87	394

Ratings at 60 Hz, as FANCY publishes them.

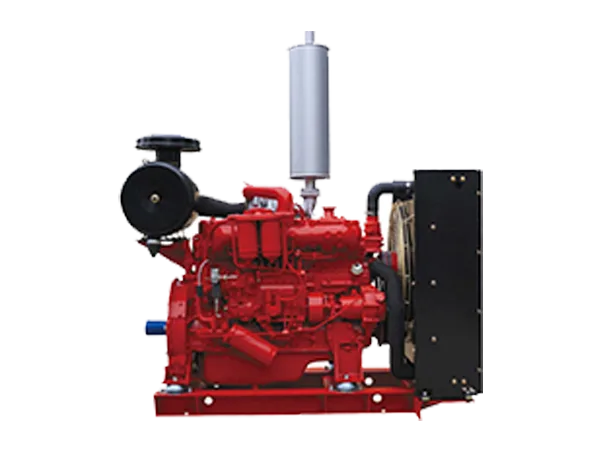

FANCY FD diesel engine in red with an air filter, an upright exhaust silencer and a radiator, on a base frame — FANCY · the maker's picture

Diesel engine for fire pumps

Direct-injection diesel engines: air-cooled, naturally aspirated single-cylinder engines; and water-cooled engines of three to six cylinders, naturally aspirated or turbocharged.

Models and ratings

Model	Cylinders	Power (kW / HP)	Speed (rpm)
FD178	1	3.7 / 5	3000
FD186	1	5.7 / 7.8	3000
FD188	1	6.6 / 9	3000
FD192	1	7.5 / 10.2	3000
FD380	3	20 / 27	3000
FD480	4	28 / 38	3000
FD490N3	4	22 / 30	3000
FD490N1	4	37 / 50	3000
FD490	4	45 / 61	3000
FD498	4	54 / 73	3000
FD4105	4	67 / 91	3000
FD485Z	4	44 / 60	3000
FD498Z	4	60 / 81	3000
FD4105Z	4	75 / 102	3000
FD490T	4	55 / 75	3000
FD4108TL	4	90 / 125	3000
FD6102T	6	125 / 170	3000
FD6126T	6	200 / 270	3000
FD6126TS	6	300 / 410	3000
FD4100B	4	30 / 40	1800
FD4100	4	45 / 61	1800
FD4105ZB	4	55 / 75	1800
FD6105ZLB	6	120 / 161	1800
FD6113ZLB	6	165 / 221	1800
FD4100C	4	26 / 35	1500
FD4102ZC	4	40 / 55	1500
FD6105ZC	6	84 / 113	1500
FD6108ZLC	6	140 / 188	1500

Ratings as FANCY publishes them.

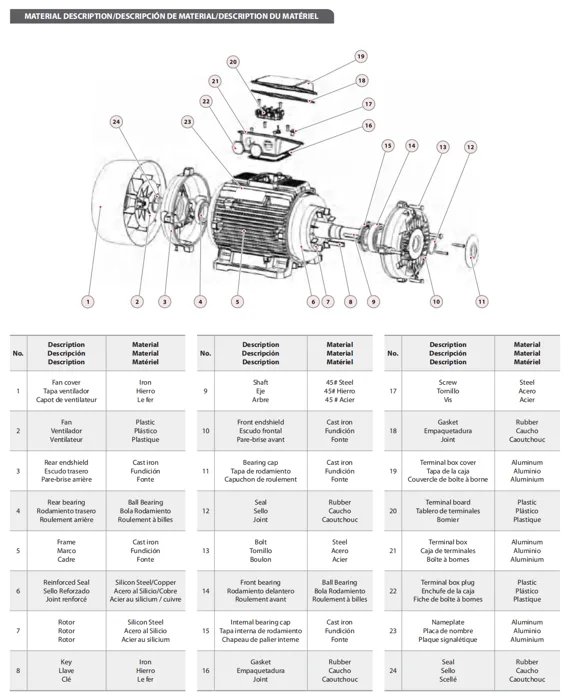

FANCY YE3 electric motor in an exploded drawing, its numbered parts shown with their materials — FANCY · the maker's picture

YE3

TEFC electric motor

A totally enclosed, fan-cooled (TEFC) electric motor that drives FANCY's fire-fighting and industrial pumps. Maker's rating: IP55 protection, insulation class F.

Models and ratings

Model	Power (kW / HP)	Speed (rpm)
YE3-801-2	0.75 / 1	3500
YE3-90S-2	1.5 / 2	3500
YE3-100L-2	3 / 4	3500
YE3-132S1-2	5.5 / 7.5	3500
YE3-160M1-2	11 / 15	3500
YE3-160L-2	18.5 / 25	3500
YE3-200L1-2	30 / 40	3500
YE3-225M-2	45 / 60	3500
YE3-280S-2	75 / 100	3500
YE3-315S-2	110 / 150	3500
YE3-315L1-2	160 / 220	3500
YE3-355M-2	250 / 340	3500
YE3-801-4	0.55 / 0.75	1750
YE3-90S-4	1.1 / 1.5	1750
YE3-100L1-4	2.2 / 3	1750
YE3-112M-4	4 / 5.5	1750
YE3-132M-4	7.5 / 10	1750
YE3-160L-4	15 / 20	1750
YE3-180L-4	22 / 30	1750
YE3-225S-4	37 / 50	1750
YE3-250M-4	55 / 75	1750
YE3-280M-4	90 / 125	1750
YE3-315M-4	132 / 180	1750
YE3-315L2-4	200 / 270	1750
YE3-355L-4	315 / 430	1750

Ratings at 60 Hz, as FANCY publishes them.

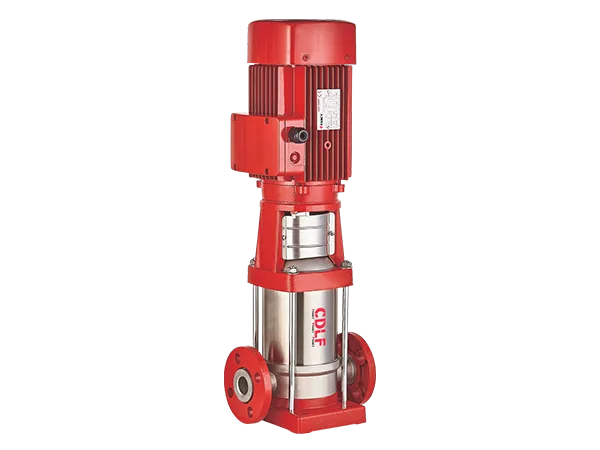

FANCY CDLF vertical multistage pump: a red motor above a stainless steel pump body, with the flanged ports at its base — FANCY · the maker's picture

FV / CDL

Vertical multistage jockey pump

A vertical multistage pump that keeps a fire protection system's pressure between preset limits while no water is flowing in the system.

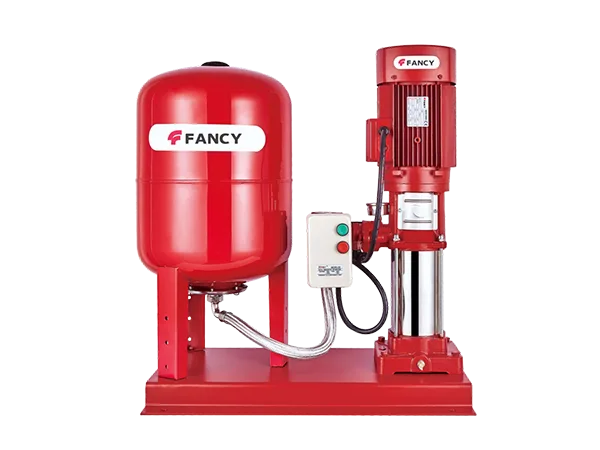

FANCY FVK jockey pump with its tank: a vertical pump, a red tank on legs and a small box with green and red push-buttons, on one red base — FANCY · the maker's picture

FVK

Jockey pump with tank

A jockey pump with a tank, driven by a YE3 motor (maker's rating IP55, insulation class F). Pump case with an anti-corrosion coating, technopolymer impeller, shaft in AISI 304 stainless steel or galvanised iron, wear-resistant mechanical seal.

Data sheet — FVK Jockey pump with tank PDF · 0.1 MB Contact us — FVK Jockey pump with tank
